Non-Destructive Structural Analysis system – CXI-PT5500

We distribute CXI-PT5500, developed by Oxys Solutions (a Cinetix Group company), an innovative measuring device (patended in Italy n.: VR 2008A000116, in the U.S. n.: US 8,630,813 B2 and pending in Europe), which provides an immediate and non-invasive condition assessment of Overhead lines’ wooden poles.

It allows Energy and Telecom Operators to perform efficient, accurate and cost effective pole inspections and management in order to streamline Operation and Maintenance.

CXI-PT5500 uses innovative and measurement technologies that allow to:

  • Check the static condition of the installed wooden poles, performing an objective and fast evaluation of the assets status;
  • Store and map (on and offline) data, related to the physical and geographical pole structure;

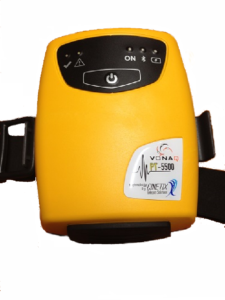

Unlike other solutions on the market, CXI-PT5500 is a lightweight portable instrument, easy to connect to the pole under test, completely non-intrusive, extremely fast and intuitive to use.

The result of the CXI-PT5500 measure is a number, the pole Strength Assessment (SA), which is a valuation of the pole Residual Strength (in lbs. or KN). The result is even expressed as a percentage (%) of the pole standard strength mean value. The graphical result is designed as a speedometer, an easy-to-use view of the measure.

CXI-PT5500 is distributed by Vonaq Ltd.
